LED dimming Driver 12V 5V 24V 36V PWM dimming LED Driver Suitable for LED Monochrome Light Strips(R11)
Product details
| Management number | 213662205 | Release Date | 2026/04/12 | List Price | $28.22 | Model Number | 213662205 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

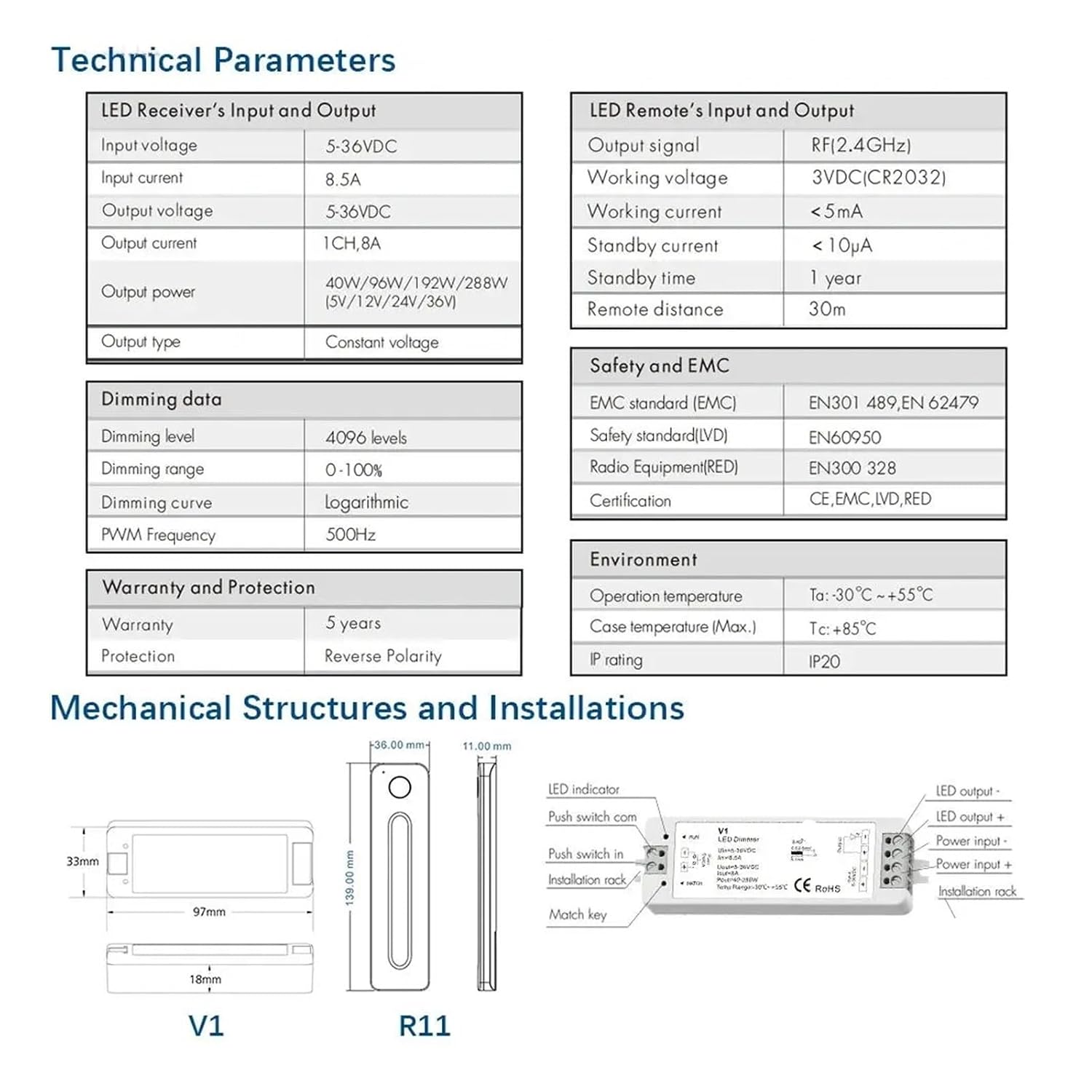

Outlet & Switch Combosfeature:Control or connect external push button switches for on/off and dimming functionsUltra-sensitive brightness adjustment touch slideDimming, smooth switching, no flickeringAutomatic transmission function: the controller automatically transmits signals to another controller with a control distance of 30mSynchronize across multiple controllersThere are magnets on the back so it can easily stick to the back stand or any metal Technical parameters:LED Receiver(V1)Input voltage: DC5V 12V 24V 36VInput current: 8.5AOutput voltage: DC5V 12V 24V 36VOutput current: 1CH, 8AOutput power: 40W(5V)/96W(12V)/192W(24V)/288W(36V)Dimming level: 4096 levelsDimming range: 0 -100%Dimming curve: logarithmicPulse width modulation frequency: 500HzLED remote control (R11)Output signal: (2.4GHz)Working voltage: 3VDC (CR2032, without battery)<;5mA<;10ARemote control distance: 30MCompetition Guide:This dimmer can be matched with various single-zone or multi-zone 2.4G dimming remote controls.Option 1: Use match keys1. Matching: Short press the matching button, and within 5 seconds, press the remote control's power button.2. Delete: Press and hold the matching button for 5 seconds to delete all matching remote controls.Option 2: Use power-ups1. Pairing: Turn off the power, then turn the power back on. Quickly press the remote control switch button 3 times within 5 seconds after turning it on. After the light flashes 3 times, the pairing is successful.2. Delete: Turn off the power, then power on again. Quickly press the remote control's power button or defense zone button 5 times within 5 seconds after turning it on. The light flashes 5 times to cancel the link.=========Features: 12V LED dimmerModel: 2.4G LED controllerMaterial: ABSmaximum. Load power: 288WOrigin: Mainland ChinaProduct Type: DimmerWorking voltage: 5V 12V 24V 36VOutput current: 1CH, 8AUsed for: Single color LED light stripsOutput signal: (2.4G)Remote control distance: 30 meters
- Outlet & Switch Combos
| Color | One Color |
|---|---|
| Model | QTIWYXYS |
| Terminal | Blade |
| Brand Name | QTIWYXYS |
| Unit Count | 1.0 Count |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | QTIWYXYS |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 1 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 4.72 x 4.72 x 4.72 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
